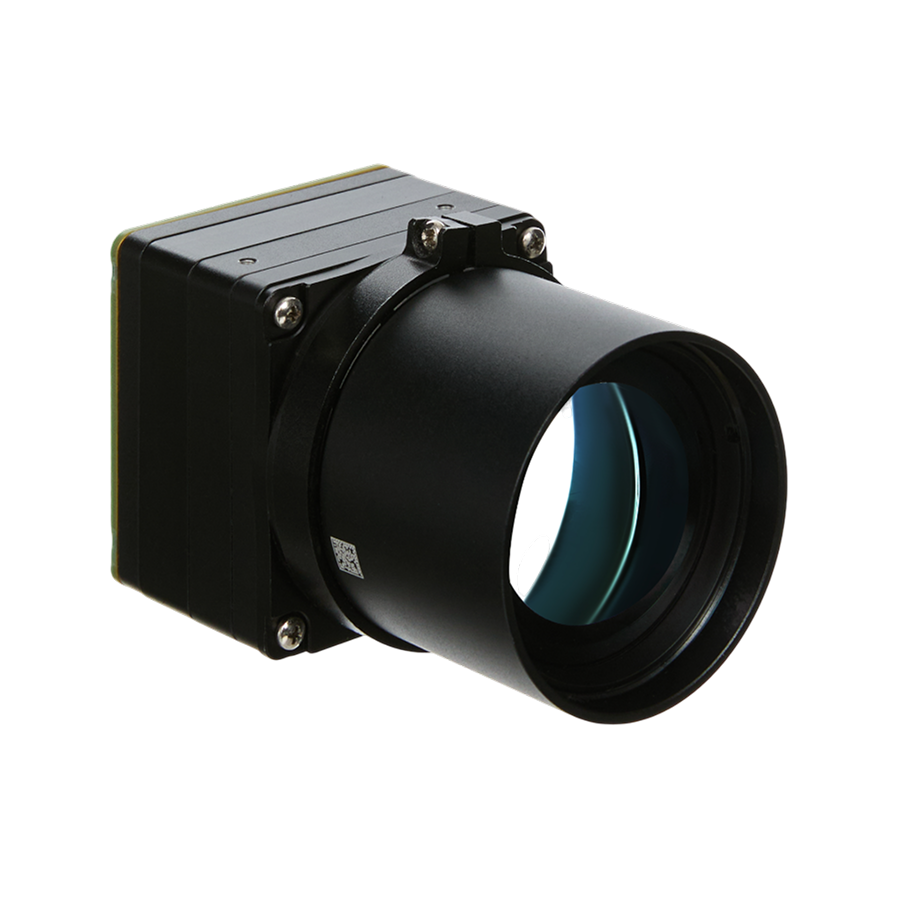

«Unit» Thermal Imaging Modules

Reliable modules, proven in real-world scenarios. They support a wide range of lenses and feature modern interfaces and video formats for seamless integration into any platform.

In comparative tests, these modules match the image quality and operational reliability of leading Chinese and American manufacturers. Designed to specifically address real issues like lens fogging, ensuring stable performance in all environmental conditions.

640×512

all-purpose thermal imager

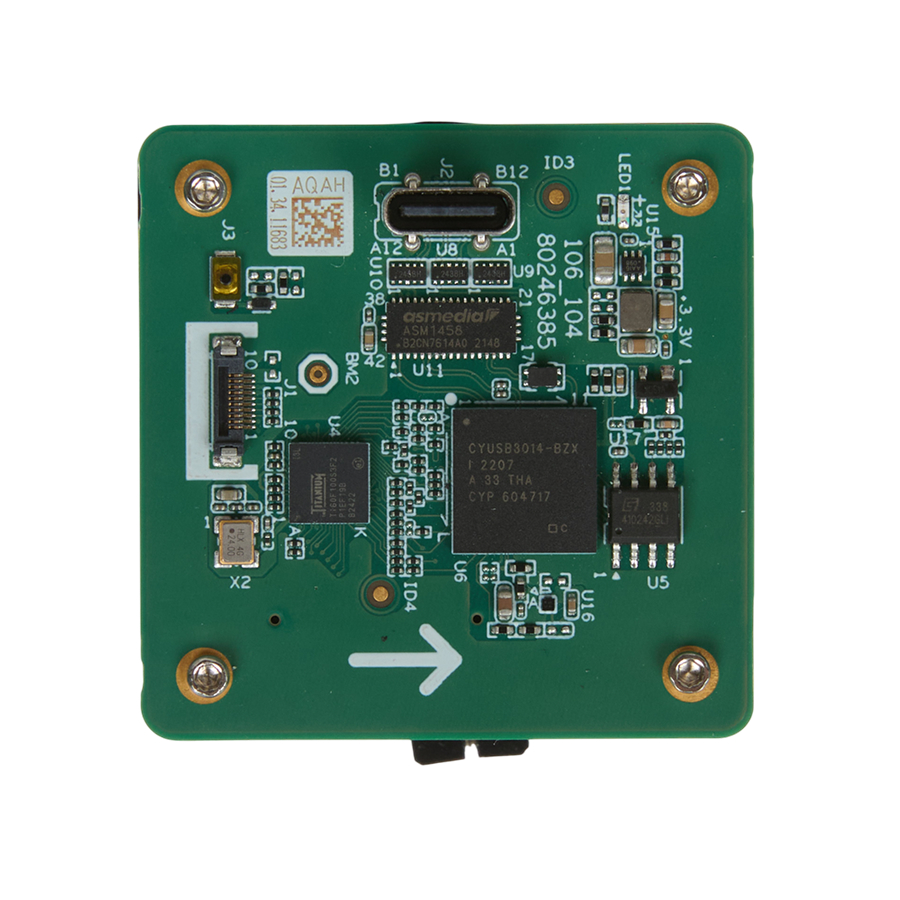

1280×1024

high-precision applications

Request a Quote

Specifications

W

Sensor



System parameters



Operating conditions

Resolution	640×512	1280×1024
Detector	Uncooled VOx	Uncooled VOx
Pixel pitch	12 µm	12 µm
Frame rate	25 fps	25 fps
Spectral range	8~14 µm	8~14 µm
Lens example	9.1 mm	35 mm
Field of View	45.9°×36.9	24.4°×19.7°

Resolution	640×512	1280×1024
Image settings	√	√
WDR	√	√
Noise reduction	2D NR/3D NR	2D NR/3D NR
Color palette	white hot / black hot / fusion / rainbow / golden autumn / midday / iron red / amber / jade / sunset / icefire / painting / pomegranate / emerald / spring / summer / autumn / winter	white hot / black hot / fusion / rainbow / golden autumn / midday / iron red / amber / jade / sunset / icefire / painting / pomegranate / emerald / spring / summer / autumn / winter
Image processing	non-uniformity correction (NUC) / digital noise reduction / digital detail enhancement	UVC / digital noise reduction / digital detail enhancement
Interfaces	USB 2.0/CVBS/UART serial interface	USB 3.0

Resolution	640×512	1280×1024
Power supply	via USB: 4.5–5.5 VDC via CVBS: 4.5–20 VDC	5V
Power consumption	≤ 0.75 W	≤ 1.45 W
Operating temperature	from –40°C to +70°C	from –30°C to +70°C
Storage temperature	from –40°C to +80°C	from –40°C to +70°C
Humidity	0–95% (no condensations)	0–95% (no condensations)
Vibrations	6.06g, random vibration, all axial directions	6.06g, random vibration, all axial directions
