«Nano» Fiber-Optic Link
A compact system for transmitting video from a UAV over distances up to 80 km via fiber-optic cable, eliminating the need for radio frequencies. The system comprises the F2 (digital) or F3 (analog) airborne transmitter, paired with either the F6 ground-based receiver or the «Control-X» controller.
F2/ F3

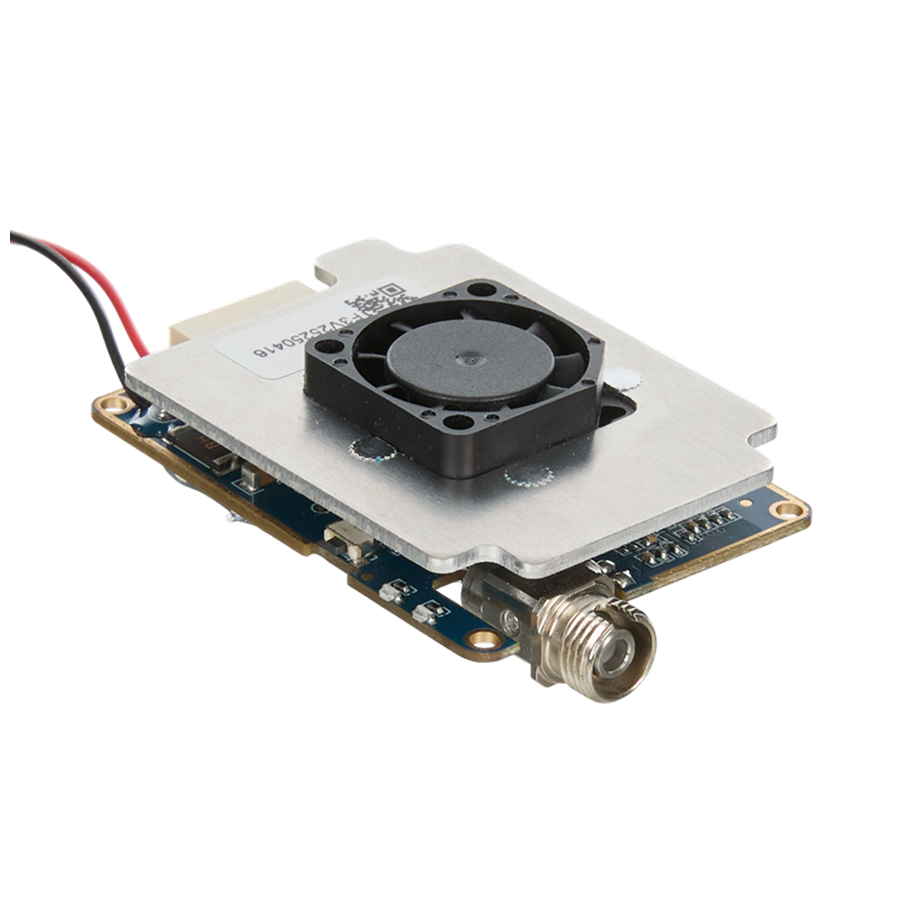

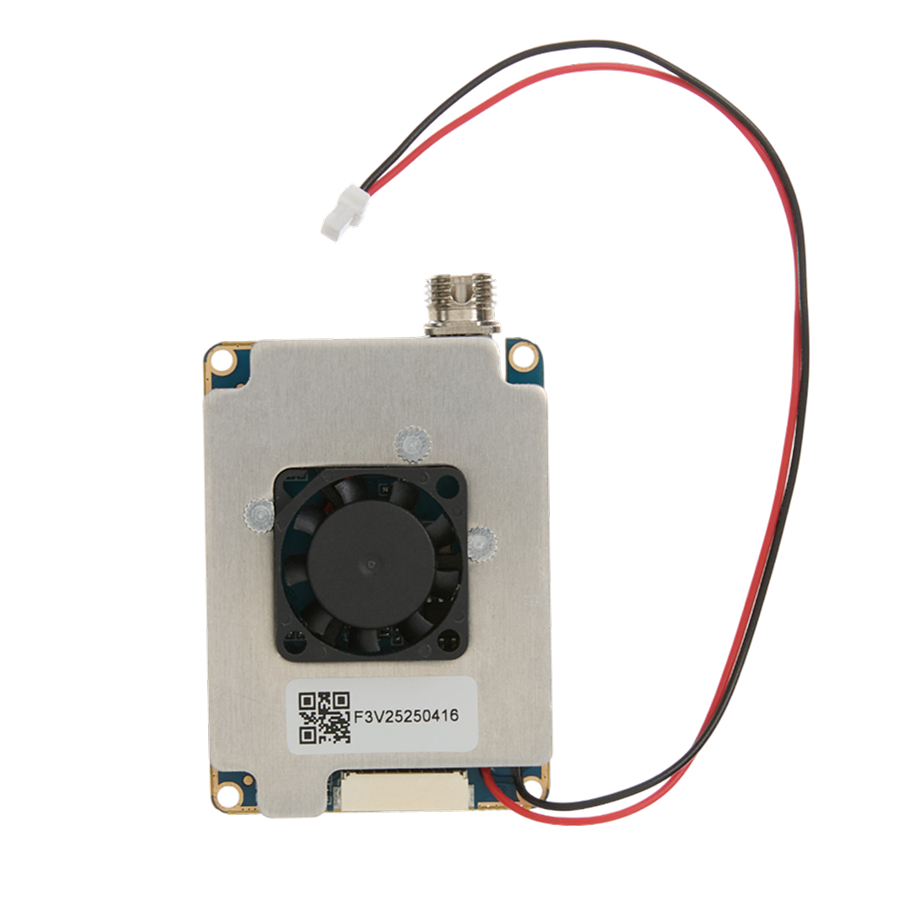

airborne transmitters: digital (F2) and analog (F3) options
F6
ground-based receiving module
Key Features
Total Immunity to Electronic Warfare
By transmitting data through a fiber-optic cable (up to 80 km), the system completely avoids radio frequencies. This ensures total immunity to jamming, interception and SIGINT, making it the perfect solution for reconnaissance and combat drones in any environment.
High-Res, Low-Latency Video
The system delivers a 4K video stream (at 30 fps) with minimal latency, which is critical for real-time operational control. The fiber-optic cable, available in lengths from 5 to 80 km, can be tailored to the mission.
Robust and Durable Design
The onboard unit weighs just 25–55 g and its durability is verified in extreme temperatures (–40°C to +70°C). The system is rated IP54 and supports a wide input voltage (5–36 V). Universal Compatibility.
Versatility
Works seamlessly with “Search” AI modules, thermal imaging systems and all standard camera equipment.
Specifications
General
Video transmission
Optical fiber
Camera (for F2)
| Model | F2 / F3 | F6 |
|---|---|---|
| Type | Air | Ground |
| Data transmission rate | 0~100 Mbps | 0~100 Mbps |
| Range | 0~20 km / 80 km | 0~20 km / 80 km |
| Connector type | GH1.25 | GH1.25 |
| Data format | TTL / SBUS | TTL / SBUS |
| Two-way data transmission | Supported | Supported |
| Video transmission protocol | RTMP / RTSP / TS | RTMP / RTSP / TS |
| Power supply | 9~28 V | 9~28 V |
| Casing material | Aluminum | Aluminum |
| Dimensions | 65 х 38 х 9 мм Weight:25г | 79 х 46 х 14 мм Weight:55г |
| Operating temperature | -40 ºС ~ +70ºС | - |
| Model | F2 | F3 | F6 |
|---|---|---|---|
| Video transmission | NTSC / PAL / SECAM | - | NTSC / PAL / SECAM |
| Video resolution | up to 4k@30 fps, adjustable | - | up to 4k@30 fps, adjustable |
| Video codec | H.265 / H.264 customizable | H.265 / H.264 customizable | H.265 / H.264 customizable |
| Video bitrate | 500 Kbps~ 15 Mbps adjustable | 500 Kbps~ 15 Mbps adjustable | 500 Kbps~ 15 Mbps adjustable |
| Video transmission protocol | RTMP / RTSP / TS | RTMP / RTSP / TS | RTMP / RTSP / TS |
| Video transmission | - | AV | - |
| Model | F2 / F3 | F6 |
|---|---|---|
| Wave length | 1310 / 1550 nm | 1310 / 1550 nm |
| Fiber-optic braiding | ABS-plastic | ABS-plastic |
| Fiber-optic diameter | 0.3 mm | 0.3 mm |
| Fiber-optic data protocol | FC | FC |
| Fiber-optic type | Single-mode | Single-mode |

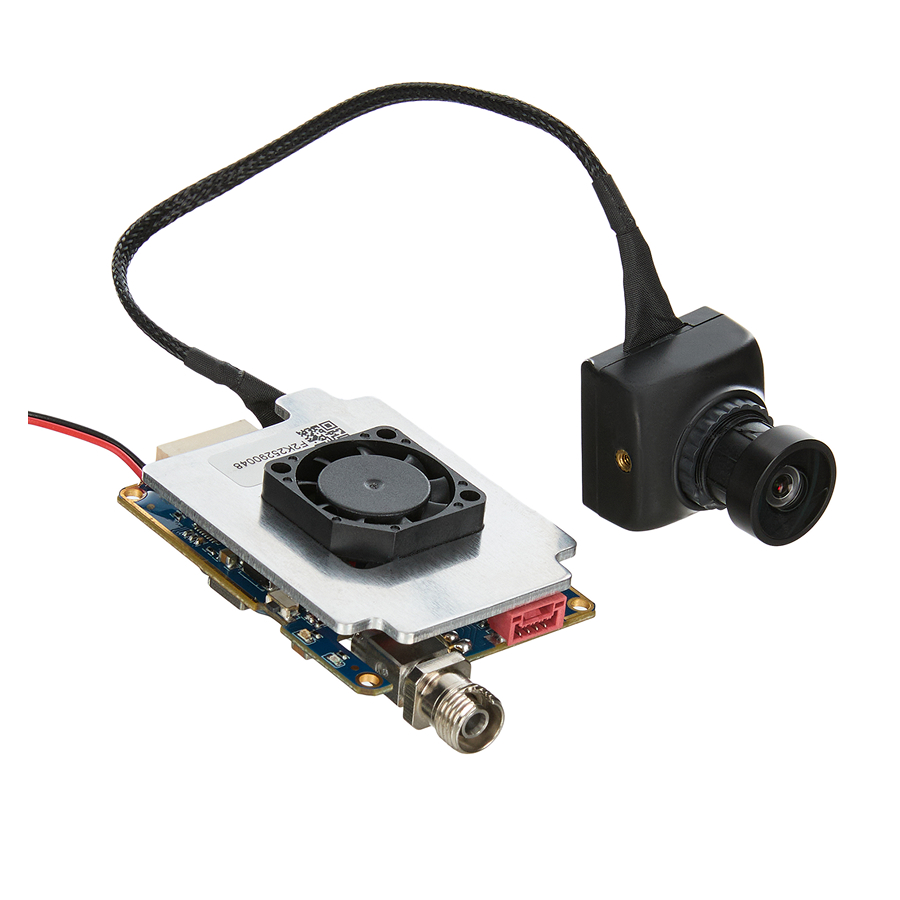

| Model | Camera (bundled with Nano-F2) |
|---|---|
| Matrix | 1/2.8" |
| Lens | 1.9 mm |
| Field of View | D=131 / ºH=121º / V=82º |
| Aperture | f/2.2 |
| Accuracy | 0.45 m |
| Operating temperature | -40 ºС ~ +70 ºC |
Gallery
